GIANT

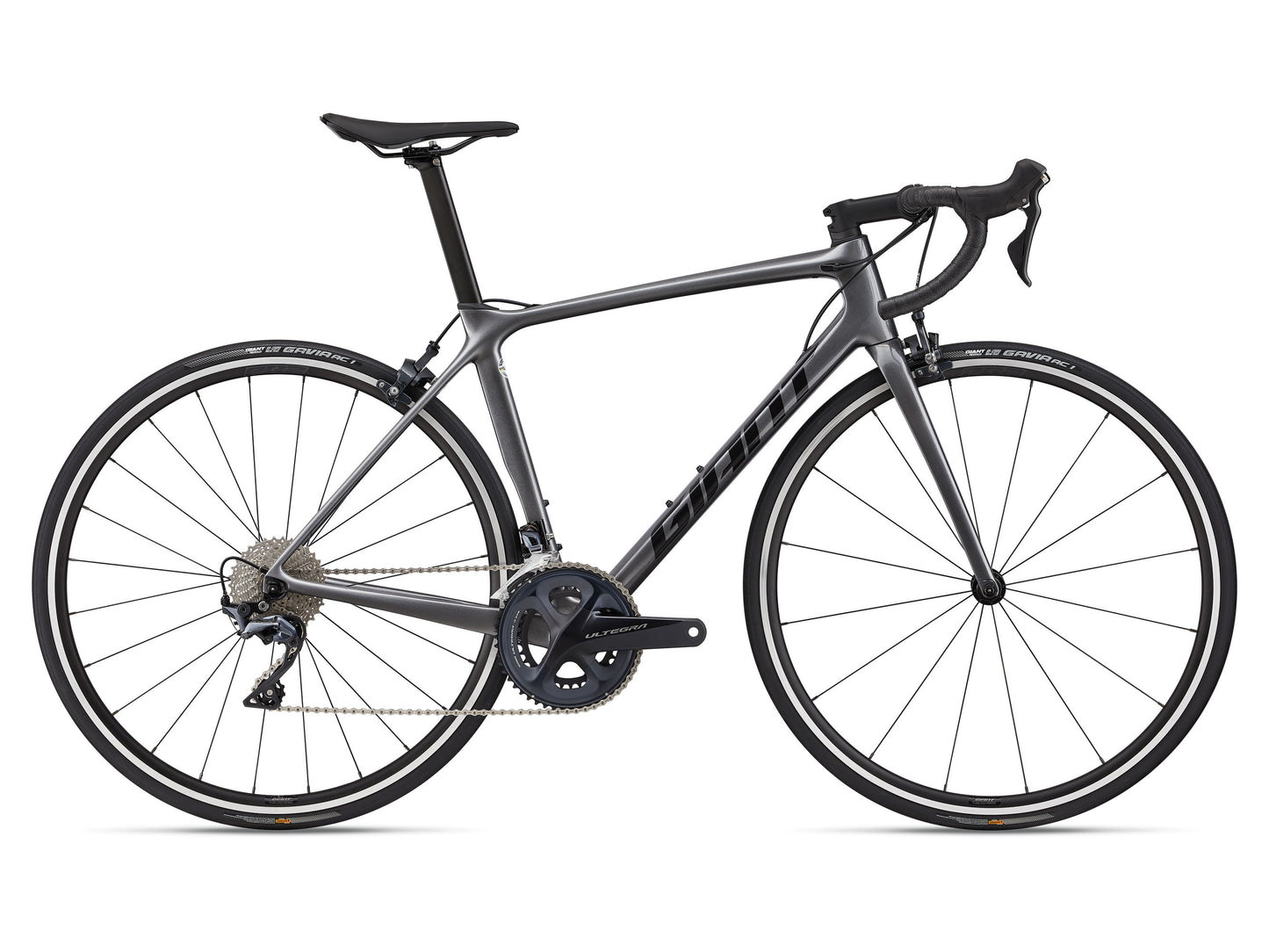

TCR Advanced 1 Black KOM
TCR Advanced 1 Black KOM
Couldn't load pickup availability
TCR Advanced 1 Black
Key Performance Factors
Unmatched Efficiency
With an exceptional stiffness-to-weight ratio and refined aerodynamic tube shaping, this frameset is crafted to enhance climbing prowess, aerodynamic performance, and sprint stiffness, providing road racers and riders with a true edge for race-winning moments.
Enhanced Aerodynamics
The TCR’s advanced design boasts considerable aerodynamic improvements over prior models. Each tube shape was meticulously analyzed, engineered, and tested to create a frame with significantly reduced drag across a broader range of wind angles, delivering noticeable speed gains.
Precision Control
Integrated disc brakes ensure smooth, powerful braking and precise modulation, enhancing control in diverse weather and road conditions. Flat mounts and updated thru-axles contribute to increased stiffness and improved handling, while expanded frame and fork clearance accommodates larger tires up to 32mm for added versatility.
Specs
| XS | S | M | ML | L | XL | |
|---|---|---|---|---|---|---|
| A Seat Tube Length (mm) | 425 | 445 | 470 | 500 | 530 | 560 |
| B Seat Tube Angle | 74.5° | 74.0° | 73.5° | 73.0° | 73.0° | 72.5° |
| C Top Tube Length (mm) | 520 | 535 | 550 | 565 | 580 | 600 |
| D Head Tube Length (mm) | 120 | 130 | 145 | 165 | 185 | 200 |
| E Head Tube Angle | 71.0° | 72.3° | 73.0° | 73.0° | 73.0° | 73.0° |
| F Fork Rake (mm) | 45 | 45 | 45 | 45 | 45 | 45 |
| G Trail (mm) | 72.1 | 64 | 59.2 | 59.2 | 59.2 | 59.2 |
| H Wheelbase (mm) | 976 | 977 | 980 | 991 | 1006 | 1020 |
| I Chain Stay Length (mm) | 405 | 405 | 405 | 405 | 405 | 405 |
| J Bottom Bracket Drop (mm) | 72 | 70 | 70 | 67 | 67 | 67 |
| K Stack (mm) | 517 | 528 | 545 | 562 | 581 | 596 |
| L Reach (mm) | 376 | 383 | 388 | 393 | 402 | 412 |
| M Stand Over Height (mm) | 702 | 722 | 743 | 769 | 793 | 813 |
| N Handlebar Width (mm) | 400 | 400 | 420 | 420 | 440 | 440 |
| O Stem Length (mm) | 80 | 90 | 100 | 110 | 110 | 120 |
| P Crank Length (mm) | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
| Q Wheel Size | 700C | 700C | 700C | 700C | 700C | 700C |
| Attribute | Details |
|---|---|
| Sizes | XS, S, M, M/L, L, XL |
| Colors | Charcoal |
| Frame | Advanced-Grade Composite |
| Fork | Advanced-Grade Composite, full-composite OverDrive steerer |
| Shock | N/A |
| Handlebar | Giant Contact XS:40cm, S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm |
| Grips | Stratus Lite 2.0 |
| Stem | Giant Contact XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm |
| Seatpost | Giant Variant, composite, -5/+15mm offset |
| Saddle | Giant Approach |
| Pedals | N/A |
| Shifters | Shimano Ultegra |
| Front Derailleur | Shimano Ultegra |
| Rear Derailleur | Shimano Ultegra |
| Brakes | Shimano Ultegra |
| Brake Levers | Shimano Ultegra |
| Cassette | Shimano Ultegra, 11-speed, 11x34 |
| Chain | KMC X11EL-1 |
| Crankset | Shimano Ultegra, 34/50 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm |
| Bottom Bracket | Shimano, press fit |
| Rims | Giant P-R2 wheelset |
| Hubs | Giant P-R2 wheelset |
| Spokes | Giant P-R2 wheelset |
| Tires | Giant AC 1, tubeless, 700x25c (28mm), folding |
| Extras | tubeless prepared, 28mm max tire size |
| Weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Weight may vary based on size, finish, hardware, and accessories. All bikes are designed for best-in-class weight and ride quality. |
