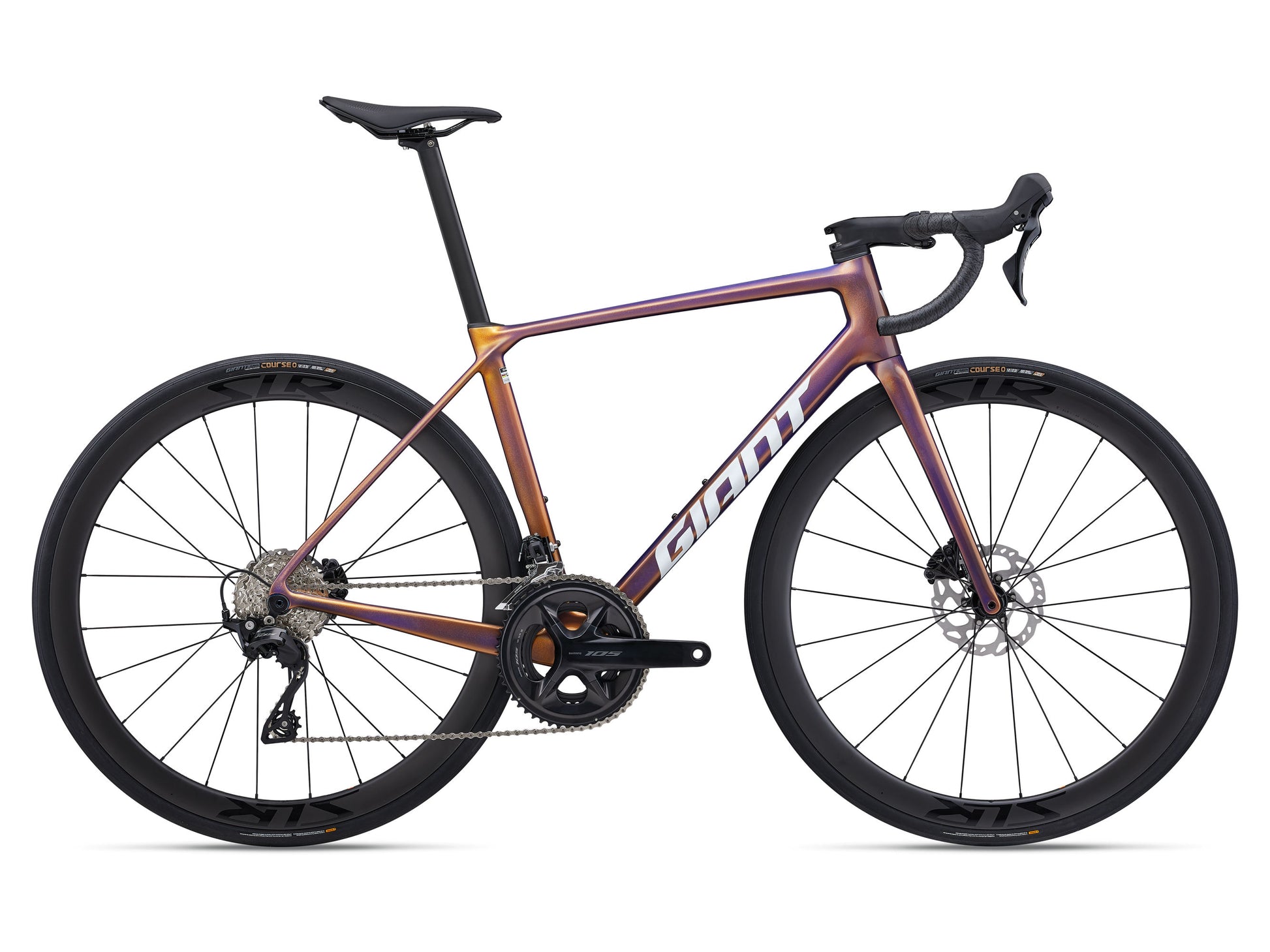

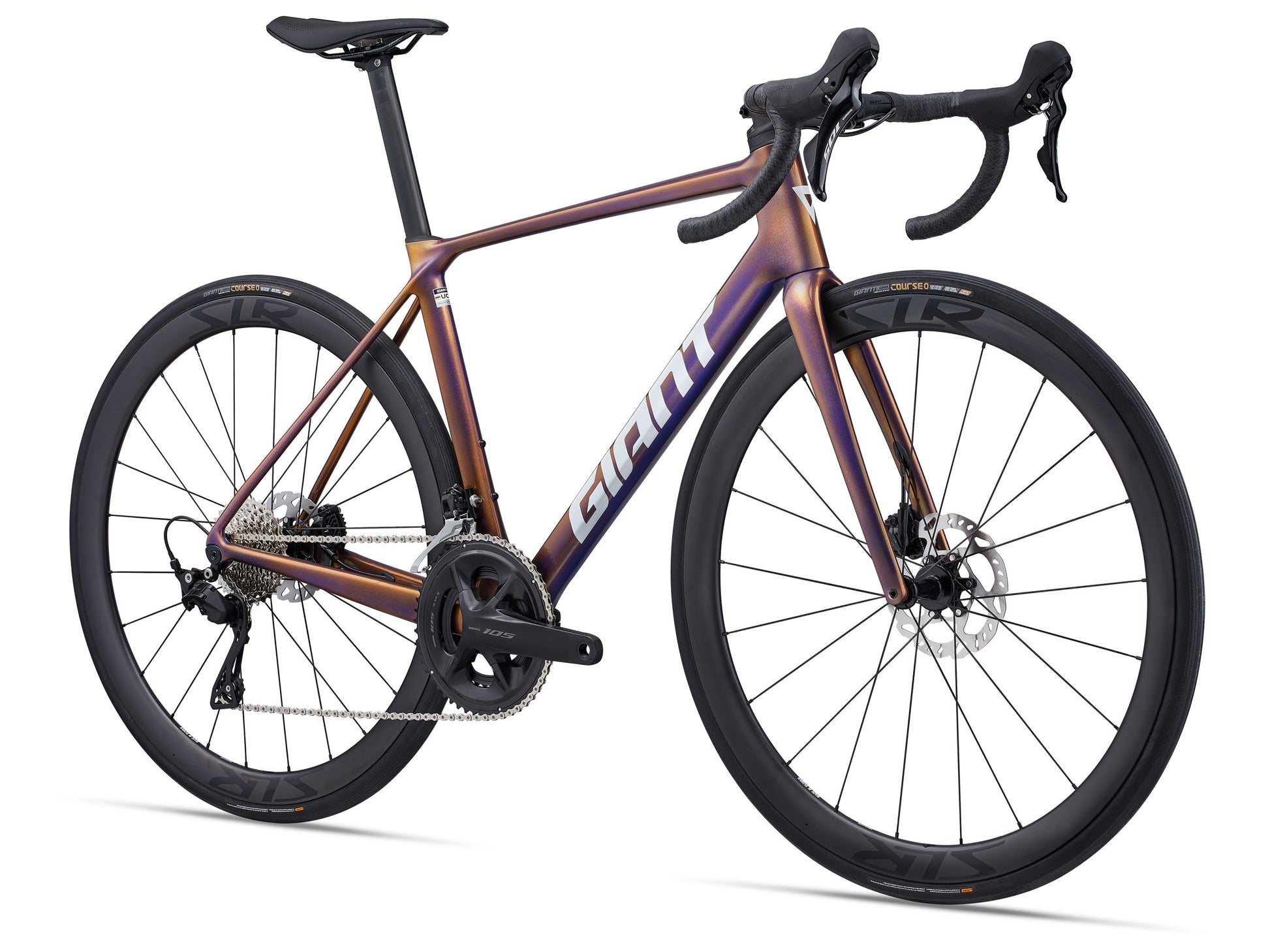

GIANT TCR Advanced Pro 2 Meteor Storm
GIANT TCR Advanced Pro 2 Meteor Storm
GIANT TCR Advanced Pro 2
Lightweight, highly efficient, and an absolute joy to ride, this versatile race bike combines cutting-edge composite frame technology with fully integrated components, enabling you to climb, corner, and descend with remarkable speed and exceptional handling.
Key Performance Factors
SYSTEM OPTIMIZATION
The frameset, wheels, cockpit, and other components are meticulously engineered, developed, and tested as a cohesive system. The innovative OverDrive Aero steerer tube technology, paired with the Contact SL AeroLight stem and Contact SL handlebar, allows for internal cable routing that seamlessly integrates the top cap, cables, and spacers, creating a more aerodynamic and user-friendly setup.
WINNING EFFICIENCY
With an improved stiffness-to-weight ratio over the previous model, enhanced aero tube shaping, and a lighter overall weight, this uncompromising race bike offers explosive acceleration and remarkable pedaling stiffness. The result is race-winning performance when it matters most.
INTEGRATED AERODYNAMICS
Every tube shape is carefully engineered and developed using Computational Fluid Dynamics (CFD) modeling and wind-tunnel testing. From the truncated ellipse shape of the frame tubing to the redesigned cockpit and component integration, all aspects contribute to a streamlined profile that enhances overall aerodynamic performance compared to earlier generations.
Specs
XS | S | M | ML | L | XL | |
---|---|---|---|---|---|---|
Seat Tube Length (mm) | 425 | 445 | 470 | 500 | 530 | 560 |
Seat Tube Angle | 74.5° | 74.0° | 73.5° | 73.0° | 73.0° | 72.5° |
Top Tube Length (mm) | 520 | 535 | 550 | 565 | 580 | 600 |
Head Tube Length (mm) | 120 | 130 | 145 | 165 | 185 | 200 |
Head Tube Angle | 71.0° | 72.3° | 73.5° | 73.0° | 73.0° | 72.5° |
Fork Rake (mm) | 45 | 45 | 45 | 45 | 45 | 45 |
Trail (mm) | 72 | 64 | 59 | 59 | 59 | 59 |
Wheelbase (mm) | 976 | 977 | 980 | 991 | 1006 | 1020 |
Chain Stay Length (mm) | 405 | 405 | 405 | 405 | 405 | 405 |
Bottom Bracket Drop (mm) | 72 | 69.5 | 69.5 | 67 | 67 | 67 |
Stack (mm) | 517 | 528 | 545 | 562 | 581 | 596 |
Reach (mm) | 376 | 383 | 388 | 393 | 402 | 412 |
Stand Over Height (mm) | 703 | 722 | 743 | 771 | 798 | 822 |
Handlebar Width (mm) | 400 | 400 | 420 | 420 | 440 | 440 |
Stem Length (mm) | 80 | 90 | 100 | 110 | 110 | 120 |
Crank Length (mm) | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
Wheel Size | 700C | 700C | 700C | 700C | 700C | 700C |
Bike Specifications
Sizes
XS, S, M, M/L, L, XL
Colors
Meteor Storm
Frame Details
Component | Details |
---|---|

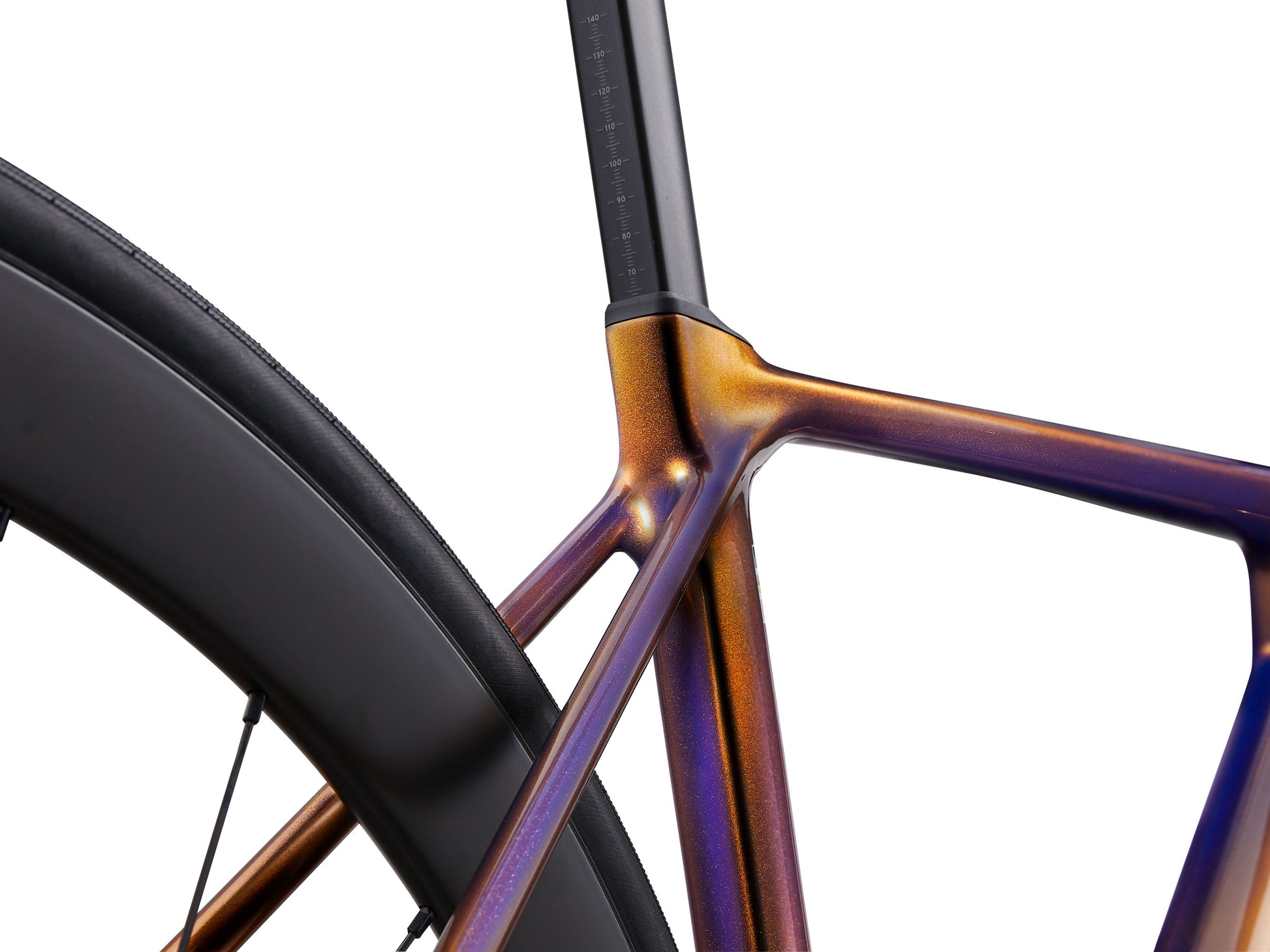

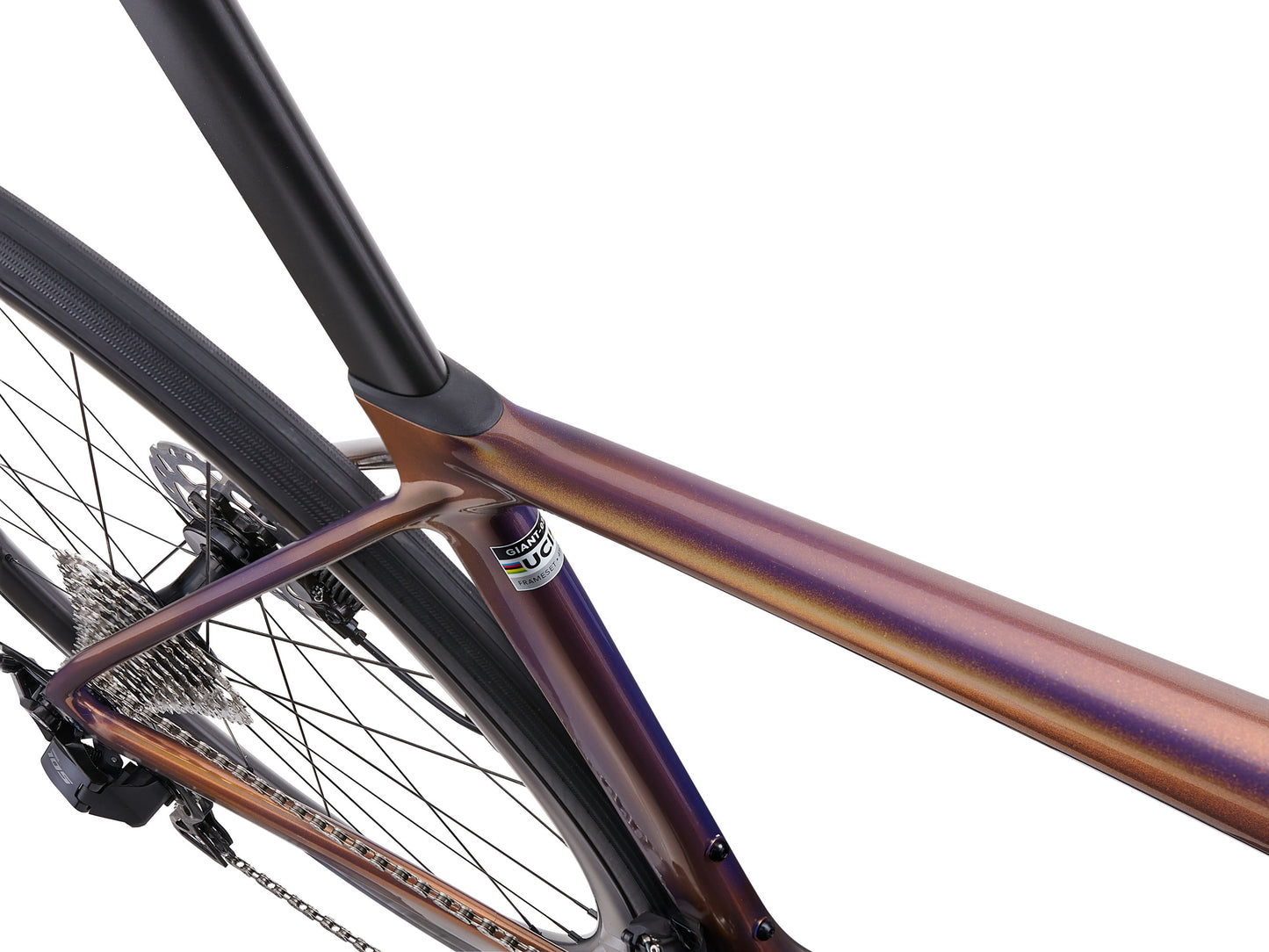

Frame | Advanced-Grade Composite, 12x142mm thru-axle, disc |
Fork | Advanced SL-Grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc |

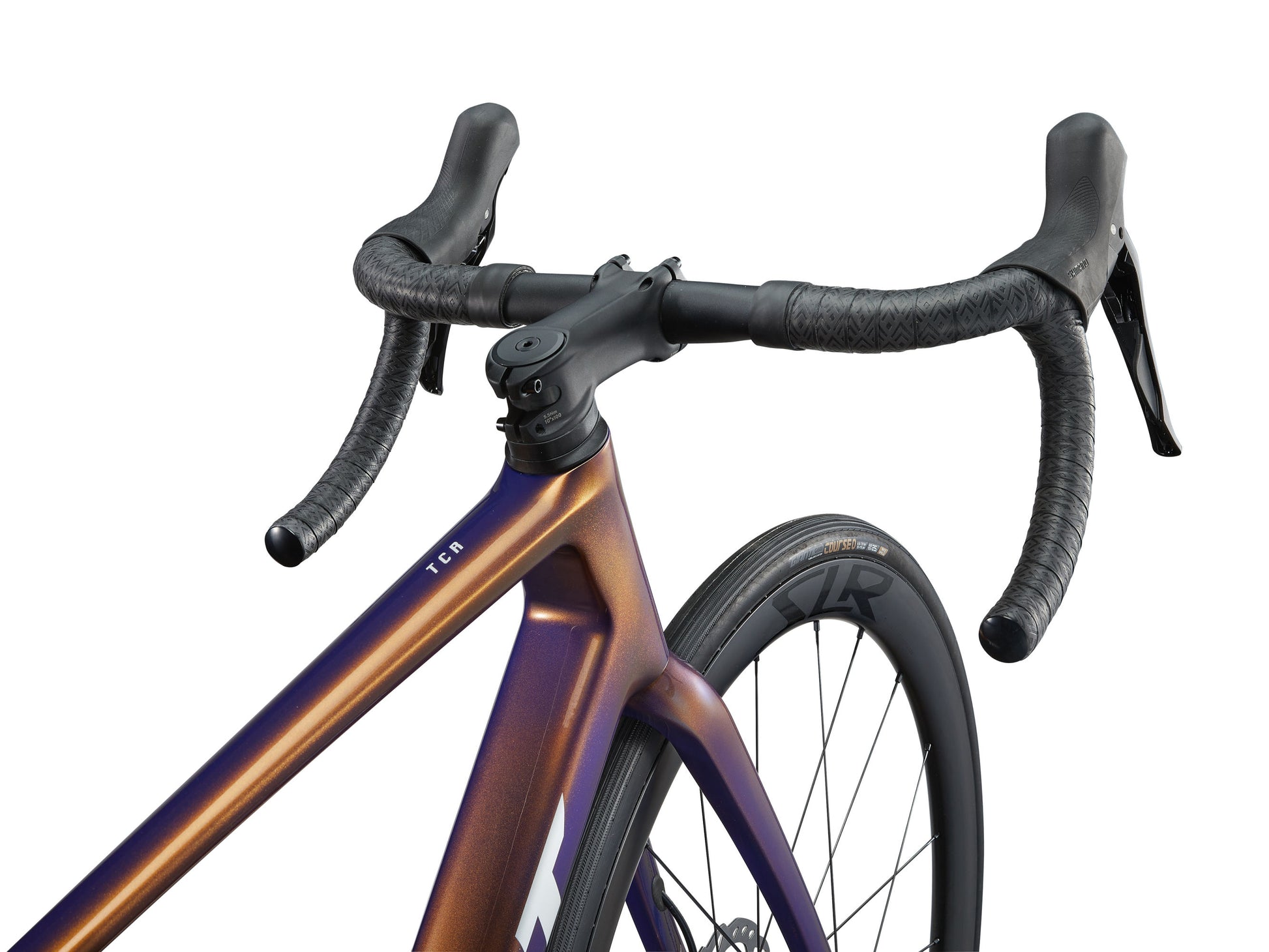

Handlebar | Giant Contact SL XS:39/40cm, S:39/40cm, M:39/42cm, M/L:39/42cm, L:41/44cm, XL:41/44cm |
Grips | Stratus Lite 2.0 |
Stem | Giant Contact SL AeroLight XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm |
Seatpost | Giant Variant, composite, -5/+15mm offset |
Saddle | Giant Fleet SL |
Pedals | N/A |
Shifters | Shimano 105 |
Front Derailleur | Shimano 105 |
Rear Derailleur | Shimano 105 |
Brakes | Shimano 105 hydraulic, Shimano SM-RT70 rotors [F]160mm, [R]140mm |
Brake Levers | Shimano 105 |
Cassette | Shimano 105, 12-speed, 11x34 |
Chain | KMC X12L-1 |

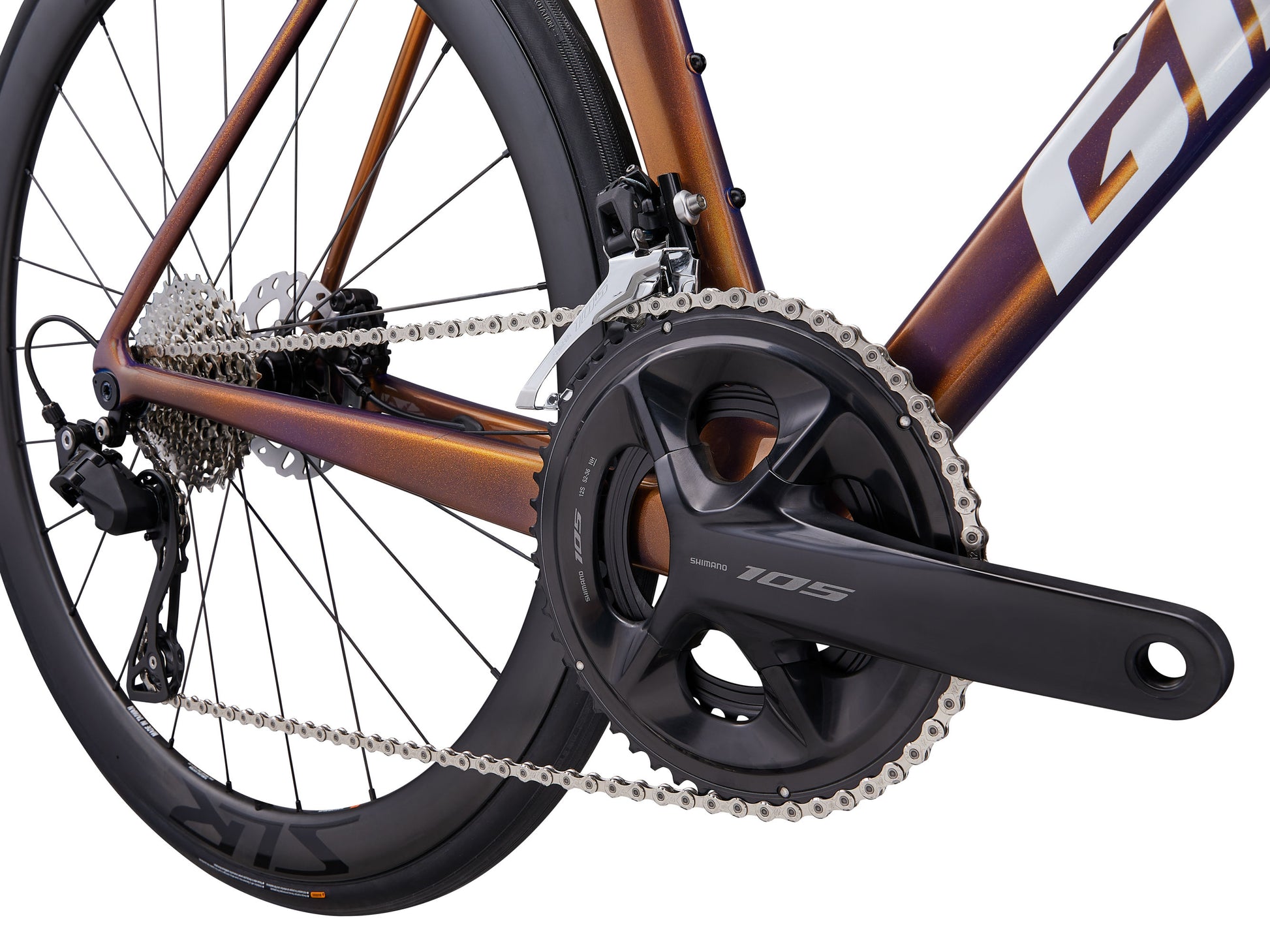

Crankset | Shimano 105, 36/52 with Giant Power Pro power meter XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm |
Bottom Bracket | Shimano, press fit |
Rims | Giant SLR 1 40 WheelSystem, [F]40mm, [R]40mm |
Hubs | [F] Giant Low Friction Hub, CenterLock, 12mm thru-axle [R] Giant Low Friction Hub, 40t ratchet driver, CenterLock, 12mm thru-axle |
Spokes | Sapim CX-Ray |
Tires | Giant Gavia Course 0, tubeless, 700x25c (28mm), folding |
Extras | Computer mount, Airway Eco Composite water bottle cage, tubeless prepared, 33mm max tire size |
Weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality, weight can vary based on size, finish, hardware, and accessories. All our bikes are designed for best-in-class weight and ride quality. |
