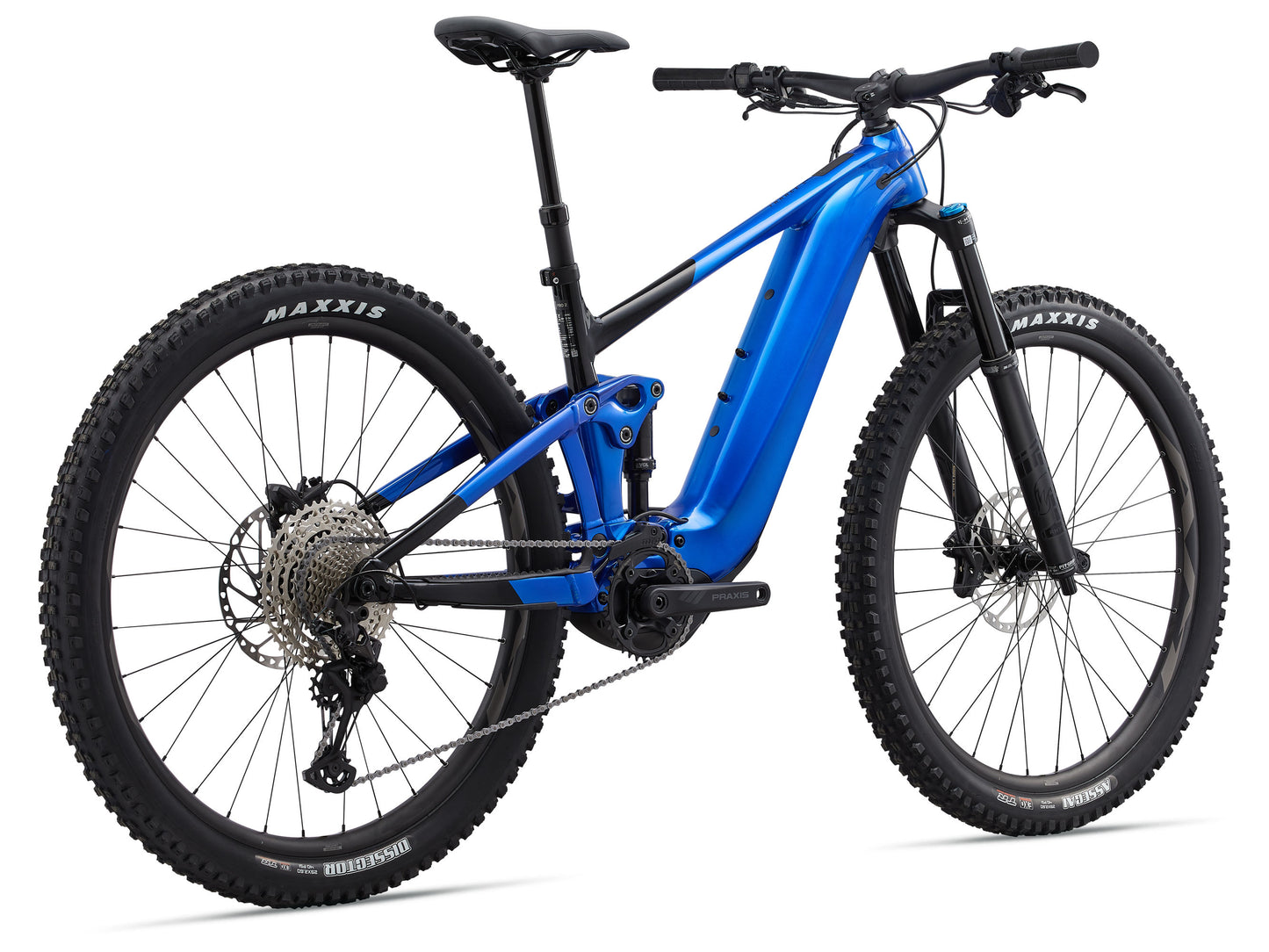

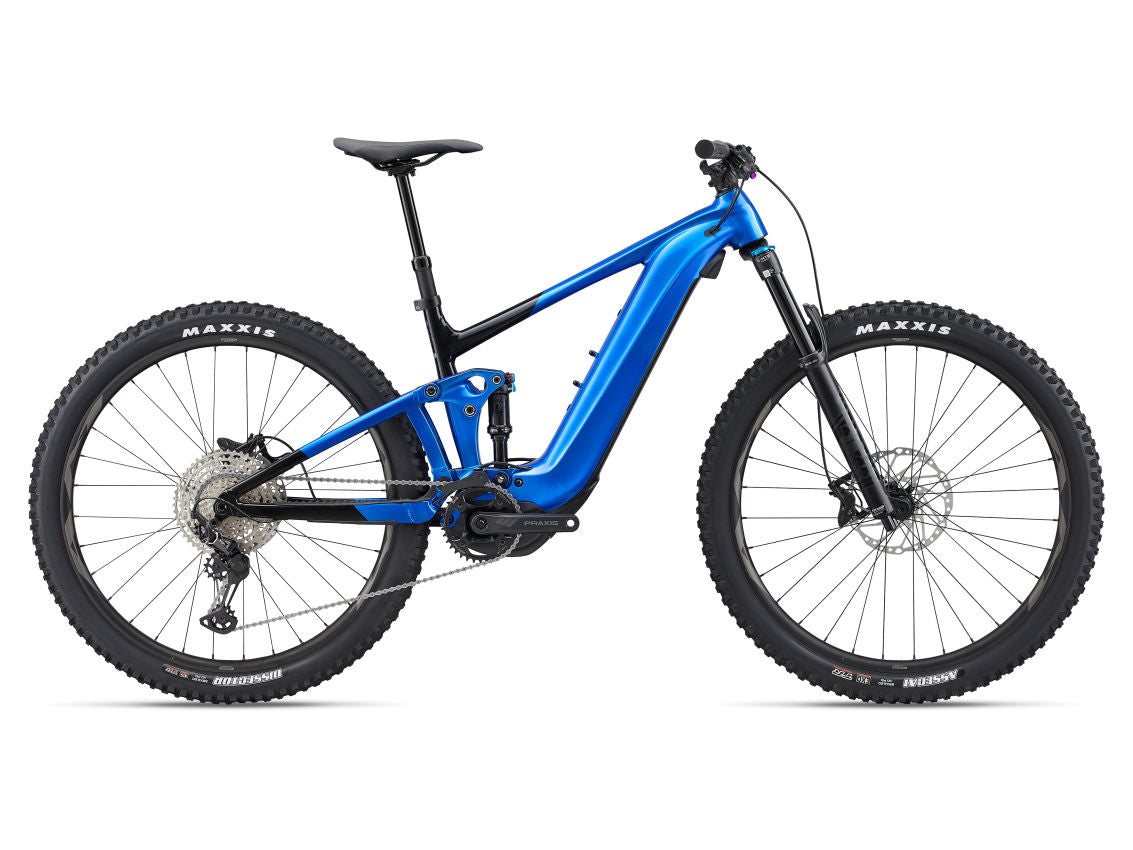

GIANT TRANCE X E+ 2 BLUE 2022
GIANT TRANCE X E+ 2 BLUE 2022
Couldn't load pickup availability
GIANT TRANCE X E+ 2 BLUE 2022 E-Bike: Enhanced Trail Performance
Discover the Giant Trance X E+ 2 Blue 2022, an e-bike designed to elevate your trail riding experience. Featuring a SyncDrive Pro motor delivering up to 85Nm of torque and adjustable support ratios up to 400%, this bike provides smooth pedal assistance that engages instantly for confident climbs and steady performance at low speeds.
Key Features:
-
Smooth, Powerful Support: SyncDrive Pro motor ensures powerful, responsive assistance on steep climbs and challenging terrain.
-
Trail-Riding Control: Optimized Maestro suspension with 140mm rear and 150mm front travel offers stability and momentum on rough trails.
-
Adaptable to Terrain: Adjustable flip chip allows customization of headtube and seattube angles, and bottom bracket height for tailored handling on varied trails.
Range:
Explore varying ranges per battery charge based on conditions such as rider weight, terrain, and weather. Ideal for everything from aggressive trail rides to XC adventures.
ENERGYPAK SMART 625 / SYNCDRIVE PRO
| Range | Extreme: 60 km | Good: 120 km | Ideal: 190 km |
| S | 163 cm - 174 cm |
| M | 171 cm - 182 cm |
| L | 179 cm - 190 cm |
| XL | 187 cm - 198 cm |
| S | M | L | XL | ||
|---|---|---|---|---|---|
| LOW | HIGH | LOW | HIGH | LOW | HIGH | LOW | HIGH | ||
| A | SEAT TUBE LENGTH (mm) | 400 | 425 | 450 | 475 |
| B | SEAT TUBE ANGLE | 76.0° | 76.7° | 76.0° | 76.7° | 76.0° | 76.7° | 76.0° | 76.7° |
| C | TOP TUBE LENGTH (mm) | 577 | 575 | 610 | 605 | 637 | 635 | 667 | 665 |
| D | HEAD TUBE LENGTH (mm) | 95 | 100 | 110 | 120 |
| E | HEAD TUBE ANGLE | 65.7° | 66.5° | 65.8° | 66.5° | 65.8° | 66.5° | 65.8° | 66.5° |
| F | FORK RAKE (mm) | 44 | 44 | 44 | 44 |
| G | TRAIL (mm) | 117 | 122.4 | 117 | 122.4 | 117 | 122.4 | 117 | 122.4 |
| H | WHEELBASE (mm) | 1205 | 1206 | 1239 | 1237 | 1268 | 1269 | 1300 | 1301 |
| I | CHAIN STAY LENGTH (mm) | 473 | 473 | 473 | 473 | 473 | 473 | 473 | 473 |
| J | BOTTOM BRACKET DROP (mm) | 30 | 20 | 30 | 20 | 30 | 20 | 30 | 20 |
| K | STACK (mm) | 606 | 601 | 611 | 605 | 621 | 614 | 630 | 624 |
| L | REACH (mm) | 439 | 447 | 457 | 462 | 482 | 489 | 510 | 517 |
| M | STAND OVER HEIGHT (mm) | 783 | 789 | 775 | 784 | 763 | 770 | 775 | 782 |
| N | HANDLEBAR WIDTH (mm) | 780 | 780 | 780 | 780 |
| O | STEM LENGTH (mm) | 40 | 40 | 50 | 50 |
| P | CRANK LENGTH (mm) | 160 | 165 | 165 | 170 |
| Q | WHEEL SIZE | 29" | 29" | 29" | 29" |
HIGHLIGHTS
| Motor | SyncDrive Pro, 85Nm, powered by Yamaha |
| Sensor | RideControl Ergo 3, grip integrated |
| Display | RideControl GO, frame integrated LED displayANT+ Wireless display compatible |
| Battery | EnergyPak Smart 625Wh, EnergyPak Plus range extender compatible |
| Frame | ALUXX SL-Grade Aluminum, Advanced Forged Composite linkage, 140mm Maestro Suspension System, 'Boost' 148x12 UDH derrailleur hanger, Giant EnergyPak Plus Range Extender Compatible |
| Fork |
Fox 36 Float Rhythm, 150mm travel, 44mm offset, EVOL, Grip Damper, Sweep adjust, Boost 110x15QR, e-optimized |
| Shock |
Fox Float DPS Performance, EVOL Large Volume sleeve, 3-position Lever, 185x52.5mm Trunnion mount, custom tuned |
| Handlebar | Giant Contact 35 Trail, 35x780mm |
| Grips | Giant Tactal Pro-E, single lock-on |
| Stem | Giant Contact SL 35 |
| Seatpost | Giant Contact Switch, dropper, 30,9mm (S:125, M: 150, L/XL:170) |
| Saddle | Giant Romero Trail |
| Pedals | Flat pedal |
| Shifters | Shimano SLX |
| Front Derailleur | MRP HD2 co-moulded chain guide |
| Rear Derailleur | Shimano Deore XT, 12-speed, Shadow+ |
| Brakes | Shimano Deore BR-M6120, 4-piston, hydraulic disc, 203mm |
| Brake Levers | Shimano Deore BL-M6100, I-spec EV |
| Cassette | Shimano CS-M6100-12, 10-51T, 12-speed |
| Chain | KMC e.12 Turbo, EcoProteq, e-bike optimized |
| Crankset | Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (Q-factor=168, S:160, M/L:165, XL:170) |
| Bottom Bracket | - |
| Rims | Giant AM 29", Tubeless ready, 30mm inner width |
| Hubs | Shimano MT410 Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axle |
| Spokes | Sapim E-Lite [R] Race [F] |
| Tires | Maxxis Assegai 29x2.6" foldable, Tubeless, EXO [F]Maxxis Dissector 29x2.6" Foldable, Tubeless, EXO+ [R] |
| Extras | Tubeless kit (liquid, valves, levers, manual, tool) |
| Lighting | Optional:- Giant Recon series e-bike lights available and direct connectable |
