GIANT
GIANT TCR Advanced 0 PC Gray
GIANT TCR Advanced 0 PC Gray
Couldn't load pickup availability

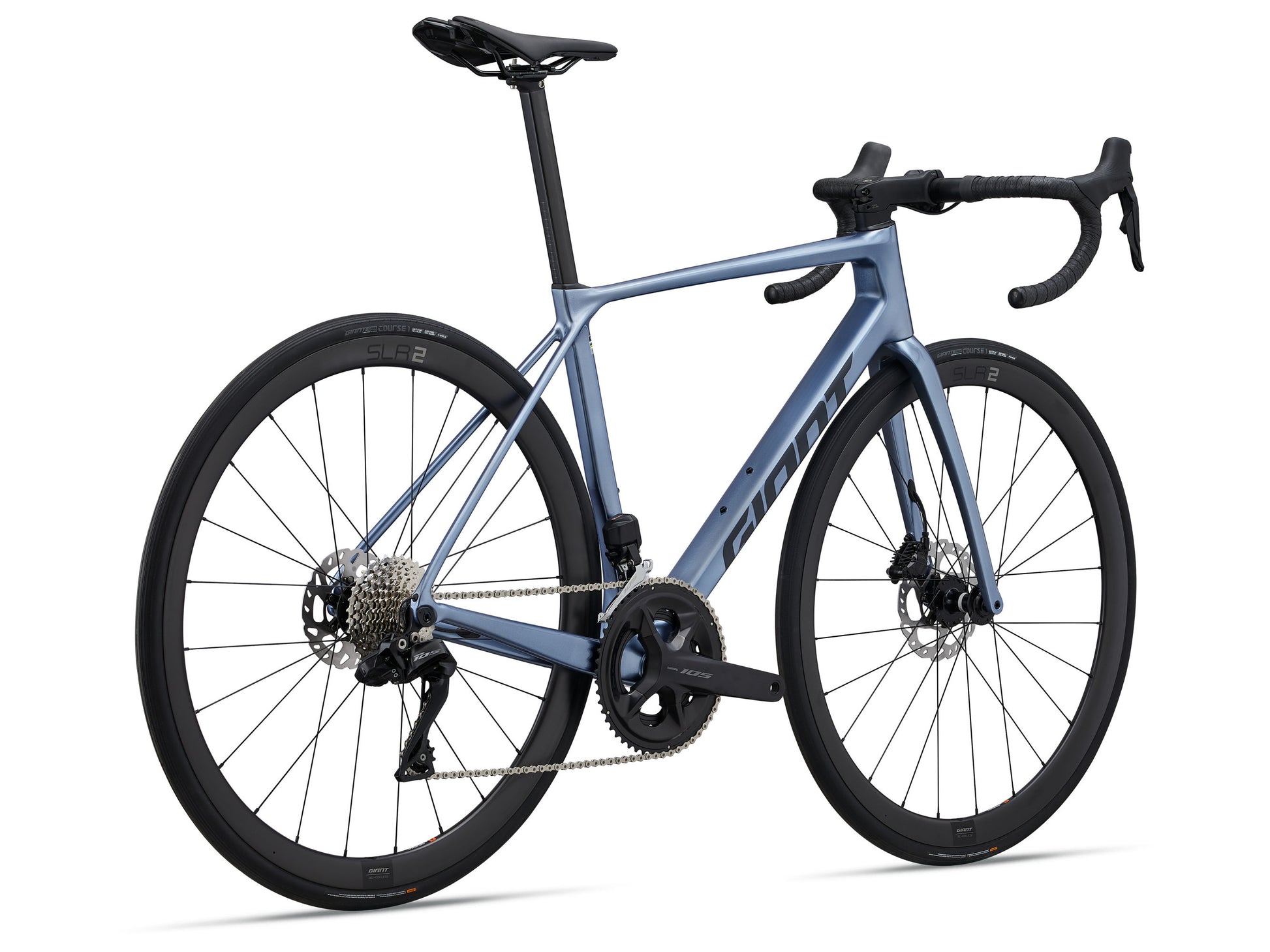

GIANT TCR Advanced 0 PC
Designed for Speed. This cutting-edge composite road racer is built for performance, whether you’re climbing, cornering, or making a decisive move. Lightweight and efficient, it’s crafted to provide a competitive advantage in every scenario.
Key Performance Factors
SYSTEM OPTIMIZATION
The frameset, wheels, cockpit, and other components are engineered and tested together to function as a cohesive system. The newly designed Contact AeroLight stem enables cable routing that integrates the top cap, cables, and spacers, resulting in a more aerodynamic and user-friendly setup.
WINNING EFFICIENCY
With an improved stiffness-to-weight ratio compared to the previous model, enhanced aero tube shaping, and a lighter overall design, this uncompromising race bike offers explosive acceleration and exceptional pedaling stiffness. The outcome is performance that can secure victories when it matters most.
INTEGRATED AERODYNAMICS

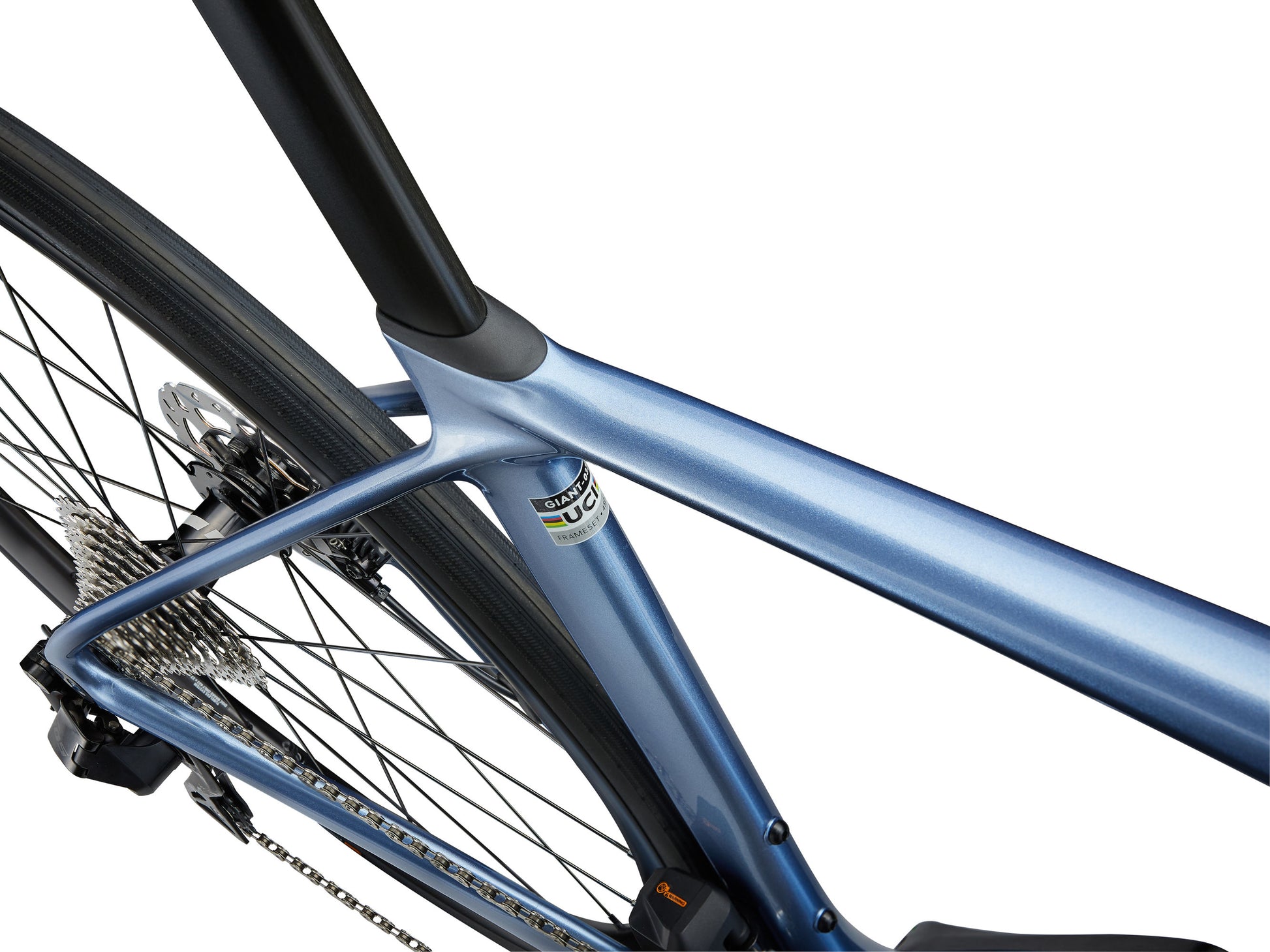

All tube shapes have been meticulously engineered and developed using Computational Fluid Dynamics (CFD) modeling and wind-tunnel testing. From the truncated ellipse shape of the frameset tubing to the redesigned cockpit and component integration, every aspect contributes to a more streamlined profile that enhances overall aerodynamic performance relative to the previous generation.
SPECS
| XS | S | M | ML | L | XL | |
|---|---|---|---|---|---|---|
| A. Seat Tube Length (inch) | 16.7 | 17.5 | 18.5 | 19.7 | 20.9 | 22 |
| B. Seat Tube Angle | 74.5° | 74.0° | 73.5° | 73.0° | 73.0° | 72.5° |
| C. Top Tube Length (inch) | 20.5 | 21.1 | 21.7 | 22.2 | 22.8 | 23.6 |
| D. Head Tube Length (inch) | 4.7 | 5.1 | 5.7 | 6.5 | 7.3 | 7.9 |
| E. Head Tube Angle | 71.0° | 72.3° | 73.5° | 73.0° | 73.0° | 72.5° |
| F. Fork Rake (inch) | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 |
| G. Trail (inch) | 2.8 | 2.5 | 2.3 | 2.3 | 2.3 | 2.3 |
| H. Wheelbase (inch) | 38.4 | 38.5 | 38.6 | 39 | 39.6 | 40.2 |
| I. Chain Stay Length (inch) | 15.9 | 15.9 | 15.9 | 15.9 | 15.9 | 15.9 |
| J. Bottom Bracket Drop (inch) | 2.8 | 2.7 | 2.7 | 2.6 | 2.6 | 2.6 |
| K. Stack (inch) | 20.4 | 20.8 | 21.5 | 22.1 | 22.9 | 23.5 |
| L. Reach (inch) | 14.8 | 15.1 | 15.3 | 15.5 | 15.8 | 16.2 |
| M. Stand Over Height (inch) | 27.7 | 28.4 | 29.3 | 30.4 | 31.4 | 32.4 |
| N. Handlebar Width (inch) | 15.7 | 15.7 | 16.5 | 16.5 | 17.3 | 17.3 |
| O. Stem Length (inch) | 3.1 | 3.5 | 3.9 | 4.3 | 4.3 | 4.7 |
| P. Crank Length (inch) | 6.7 | 6.7 | 6.8 | 6.8 | 6.9 | 6.9 |
| Q. Wheel Size | 700C | 700C | 700C | 700C | 700C | 700C |
| XS | S | M | M/L | L | XL | ||
|---|---|---|---|---|---|---|---|
| Sizes | XS | S | M | M/L | L | XL | |
| Colors | Frost Silver | ||||||
| Frame | Advanced-Grade Composite, 12x142mm thru-axle, disc | ||||||
| Fork | Advanced-Grade Composite, full-composite OverDrive steerer, 12x100mm thru-axle, disc | ||||||
| Handlebar | XS:40cm | S:40cm | M:42cm | M/L:42cm | L:44cm | XL:44cm | |
| Grips | Stratus Lite 2.0 | ||||||
| Stem | XS:80mm | S:90mm | M:100mm | M/L:110mm | L:110mm | XL:120mm | |

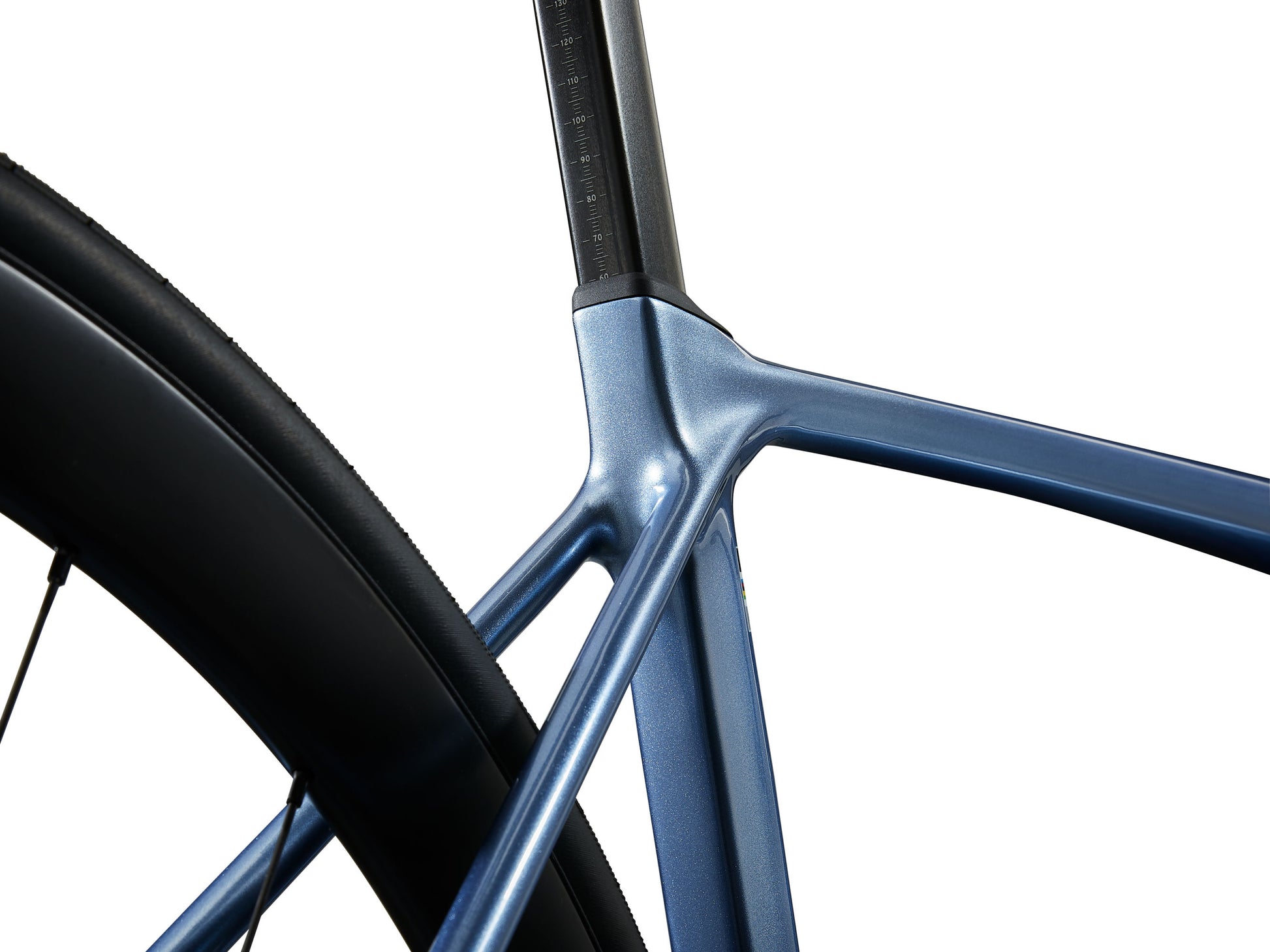

| Seatpost | Giant Variant, composite, -5/+15mm offset | ||||||
| Saddle | Giant Approach | ||||||
| Pedals | N/A | ||||||
| Shifters | Shimano 105 Di2 | ||||||
| Front Derailleur | Shimano 105 Di2 FD-R8150 | ||||||
| Rear Derailleur | Shimano 105 Di2 RD-R8150 | ||||||
| Brakes | Shimano 105 Di2 hydraulic, Shimano SM-RT70 rotors [F]160mm, [R]140mm | ||||||
| Brake Levers | Shimano 105 Di2 | ||||||
| Cassette | Shimano 105, 12-speed, 11x34 | ||||||
| Chain | KMC X12L-1 | ||||||

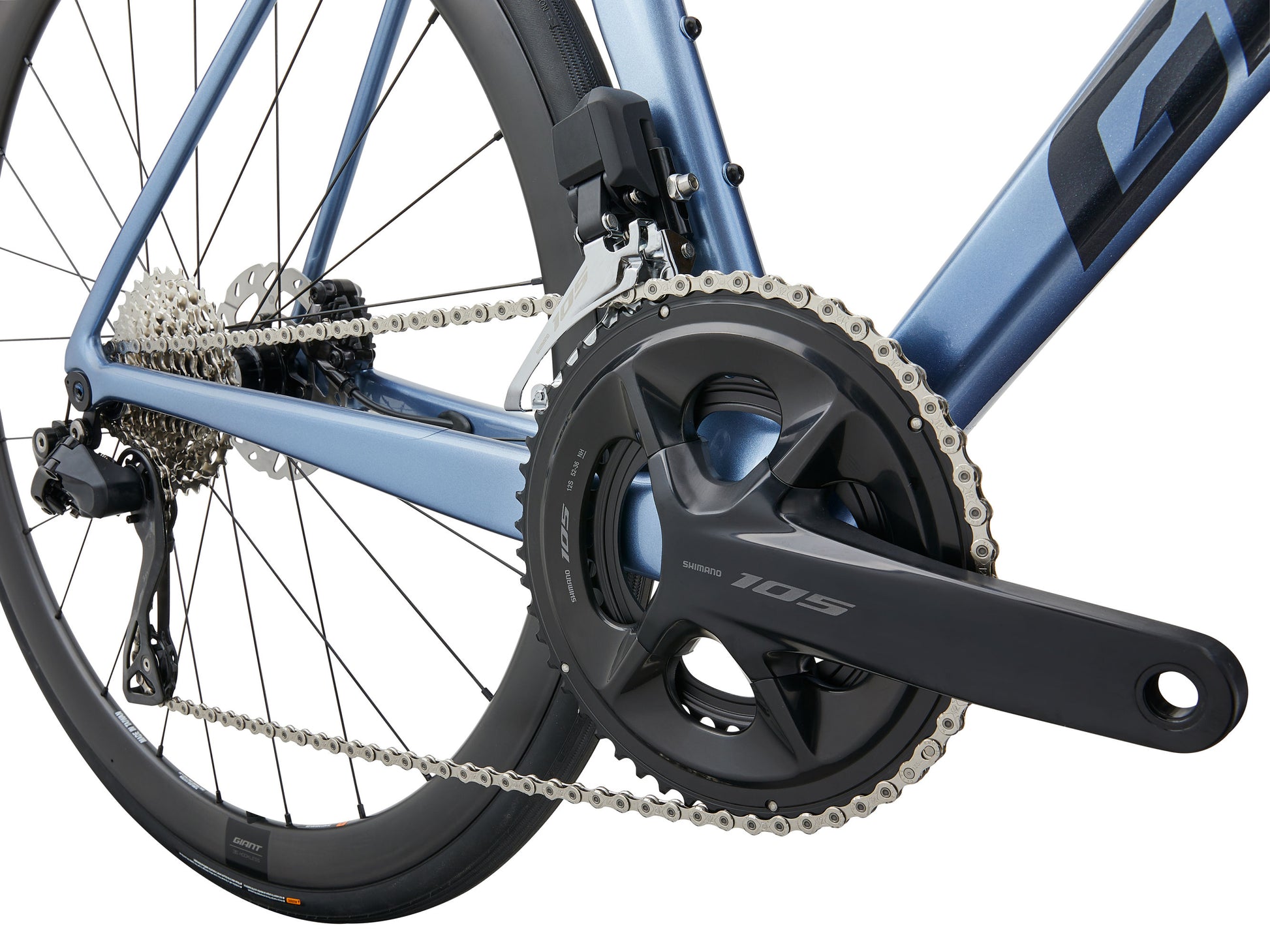

| Crankset | Shimano 105, 36/52 | XS:170mm | S:170mm | M:172.5mm | M/L:172.5mm | L:175mm | XL:175mm |
| Bottom Bracket | Shimano, press fit | ||||||
| Rims | Giant SLR 2 36 WheelSystem, [F]36mm, [R]36mm | ||||||
| Hubs | [F] Giant Low Friction Hub, CenterLock, 12mm thru-axle [R] Giant Low Friction Hub, 30t pawl driver, CenterLock, 12mm thru-axle | ||||||
| Spokes | Sapim Sprint | ||||||
| Tires | Giant Gavia Course 1, tubeless, 700x25c (28mm), folding | ||||||
| Extras | tubeless prepared, 33mm max tire size | ||||||
| Weight | 7.94kg (17lb 08oz) - Size (S) | ||||||
